Wireless M-Bus Range Extender
€149.00
Product information "Wireless M-Bus Range Extender"

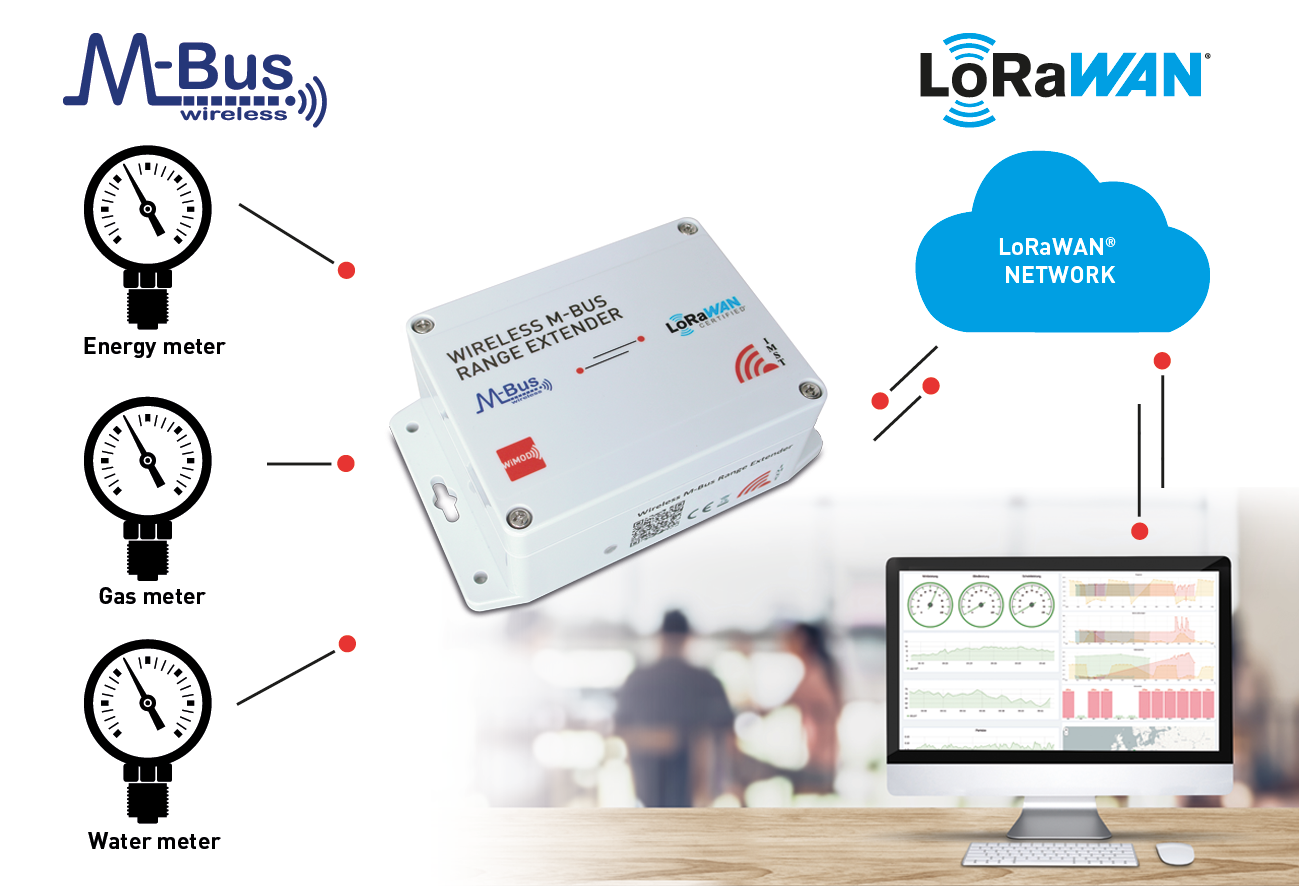

The 'Wireless Range Extender' is a compact and cost-effective device that collects Wireless M-Bus messages from utility meters and forwards them to a LoRaWAN® network. It offers a flexible way to define hourly, daily, weekly or monthly reception windows for collecting WM-Bus messages and a large data memory for temporary buffering.
The wM-Bus Range Extender allows a smart configuration of calendar events for WM-Bus reception intervals and status messages as well as device filtering by Manufacturer ID and Device ID (whitelist). Additionally a “duplicate filter” can be set to avoid processing or forwarding identical messages multiple times.
The configuration can be managed Over-The-Air via LoRaWAN® downlink messages or via a wired serial interface.
A configuration cable is required to initialize and change the settings. The article 'Configuration Cable for Wireless M-Bus Range Extender' can be chosen as an accessory in this webshop, too.
Note 1: The product is only available to professional and business users, the supplier IMST reserves the right to reject any non-business purchases.
Note 2: The product contains a Lithium-Ion Battery. Due to transport security regulations, the product is currently available in the folloeing countries only: Germany, Austria, Belgium, Denmark, France, Hungary, Italy, Luxembourg, Netherlands, Norway, Sweden, Schwitzerland, Slowenia, Slowakia, Poland, Rumänia, Ireland, Spain, Portugal. We may decide to reject your purchase order in other cases. If you still desire to have this product in other regions, you may ask for an individual quote at sales@imst.de with dedicated shipment conditions. In future the product may be available also without a battery or with a separate power supply. Shipments will be done via DHL Package International only.
LoRa® is a registered trademark of Semtech. LoRaWAN® is a registered trademark of the LoRa Alliance.
Login
Accessory Items
Configuration Cable for 'Wireless M-Bus Range Extender', accessory product for configuring the 'Wireless M-Bus Range Extender'. USB to UART cable with +3.3V TTL level UART signals (Type FTDI: TTL-232R-3V3), length 1.8 m.
