Lite Gateway - Demonstration Platform for LoRa® Technology
€249.00
Product information "Lite Gateway - Demonstration Platform for LoRa® Technology"

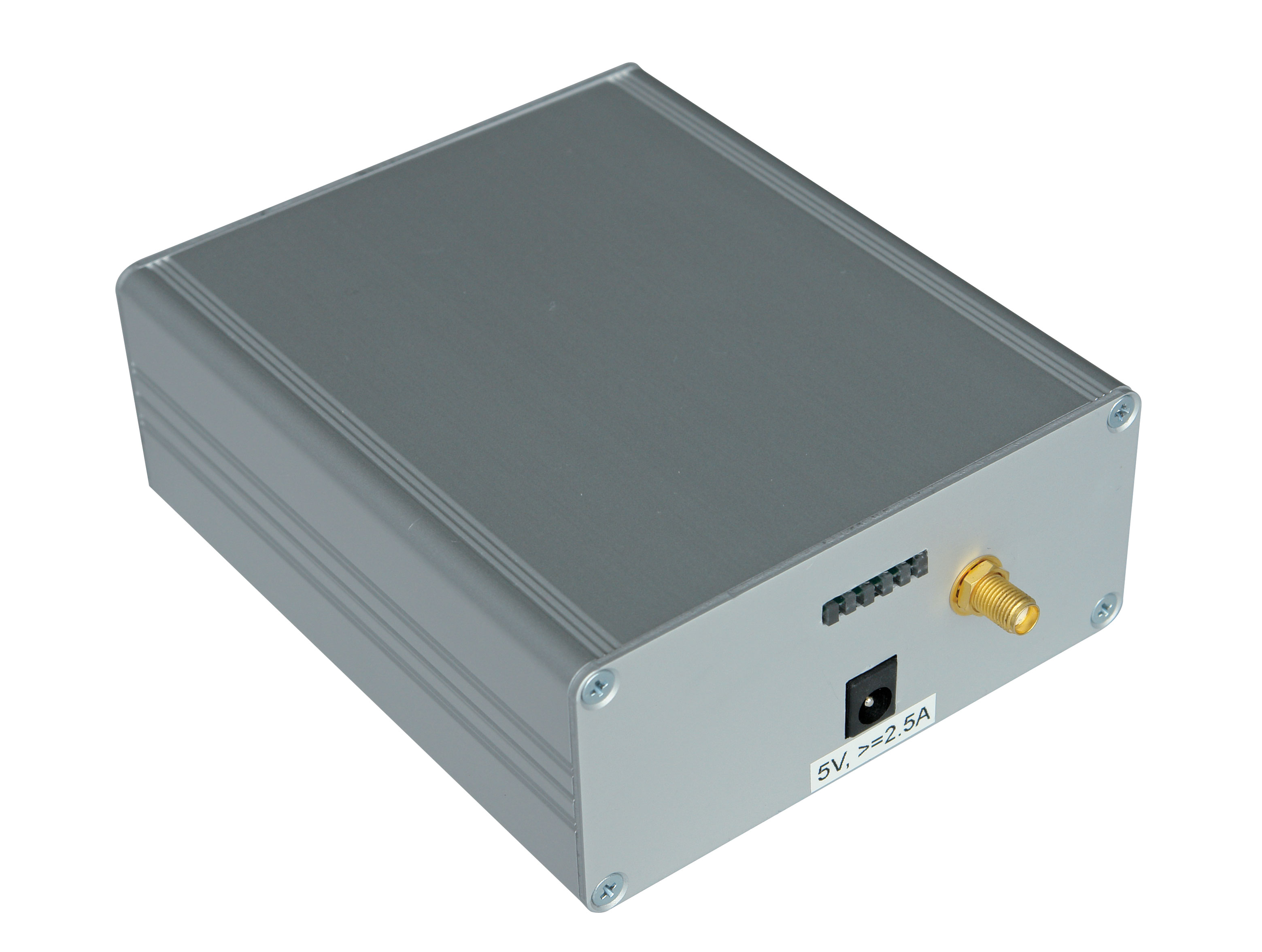

The Lite Gateway (LGW) is a demonstration and evaluation platform consisting of the pre-certified concentrator iC880A-SPI, a Raspberry Pi, a pre-configured SD-card and a housing.
The product requires an SMA-Antenna (868 MHz) and a Power Supply Unit (5 V, 2.5 A), see accessories. The Power Supply requires a 5.5mm/2mm barrel to connect the Lite Gateway Unit.
This device enables LoRa-customers to demonstrate and evaluate LoRaWAN™ features, and can be easily connect to existing servers (e.g. iot.semtech.com , Loriot). The source code of firmware is provided by the open source github project lora-net)
This evaluation board/kit is intended for use for ENGINEERING DEVELOPMENT, DEMONSTRATION OR EVALUATION PURPOSES ONLY and is not considered by IMST GmbH to be finished end - product fit for general consumer use.
LoRaWAN™ is a trademark of the LoRa Alliance®, LoRa®, LoRa Alliance® are registered trademarks of Semtech.
Login
Accessory Items
Power Supply Unit for Lite Gateway (Input AC 220/235V, Output DC 5V/2.4A, 12W). The Power Supply comes with a 5.5mm/2mm barrel to connect the Lite Gateway Unit.
SMA Antenna for iM891A-XL and iU891A Specification: Frequency range: 824-896 MHz, Impedance: 50 Ω, Gain: -2.3 dBi, Omni-directional pattern.
Similar Items
The iC880A-SPI is able to receive packets of different end devices send with different spreading factors on up to 8 channels in parallel. Due to the fact that the combination of spreading factors and signal bandwidths results in different data rates the use of “Dynamic Data-Rate Adaption” becomes possible. That means that LoRa® nodes with high distances from the concentrator must use higher spreading factors and therefore have a lower data rate. LoRa-nodes which are closer to the concentrator can use lower spreading factors and therefore can increase their data rate. This allows to build easy to handle star or multiple star networks without the need of routers or repeaters. Note: To connect a SMA Antenna (i.e. Art. 404811) it requires an u.fl-to-SMA cable (Art. 404812). LoRaWAN™ is a trademark of LoRa Alliance™, LoRa® is a registered trademark of Semtech. Microsoft Windows®, Microsoft CE® are registered trademarks of Microsoft.
